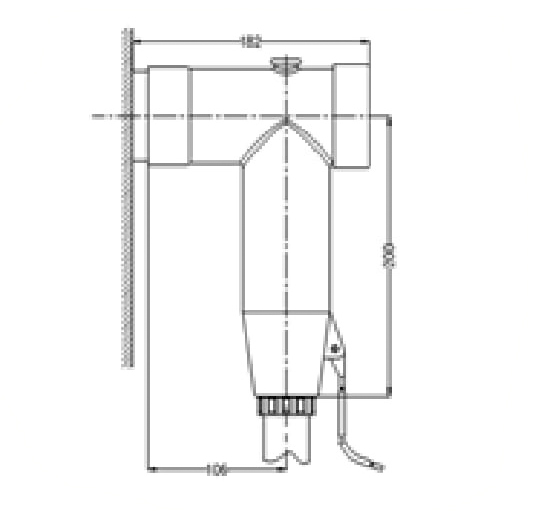

15kV T type front connector
Pre-Moulded Cable Accessories
Main Components:
TR body
Adaptor
Chain
Lug
Conductive Bar
Installation Instruction
Type Option Table
| Type | 8.7/15kV cable conductor cross section(mm) |
Adaptor Size |
|---|---|---|
| AHT3-15/630/25 | 25 | 14 |
| AHT3-15/630/35 | 35 | 14 |
| AHT3-15/630/50 | 50 | 14 |
| AHT3-15/630/70 | 70 | 14 |
| AHT3-15/630/95 | 95 | 18 |
| AHT3-15/630/120 | 120 | 18 |
| AHT3-15/630/150 | 150 | 18 |
| AHT3-15/630/185 | 185 | 22 |
| AHT3-15/630/240 | 240 | 22 |
| AHT3-15/630/300 | 300 | 27 |
| AHT3-15/630/400 | 400 | 27 |
| AHT3-15/630/500 | 500 | 27 |
