ANTI-TRACKING 3 WAY BREAKOUT

APPLICATIONS:-

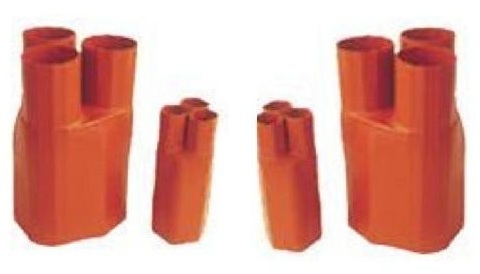

Heat shrinkable 3-way anti-tracking cable breakout provide and environmental seal to the crutch of 3 core plastic and paper insulated cables termination rated up to 36kv. The breakout are made from thermally stablized, cross linked, non-tracking weather polymeric material. The breakout are coated internally with water resistant mastic.

  • All dimensions are in mm
  • Drawing depicts typical dimensions
  • E - As supplied
  • S - After free recovery
  • D,d - internal diameter without adhesive coating

Cinque Terre

DIMENSIONS - GBR SERIES

Mobile No Size
D
 d p F TB TF
E S E S E S E S S S
min. max. min. max. +20% +20%
GBR 0820 50 21 22 9 135 187 31 50 3.5 2.2
GBR 1330 75 31 32 14 160 210 40 60 3.5 2.2
GBR 2145 110 46 52 22 160 232 40 60 3.8 2.5
GBR 2755 135 56 64 28 230 270 40 60 3.8 2.5
GBR 2755 135 56 64 28 230 270 40 65 3.8 2.8

MATERIAL SPECIFICATIONS

CHARACTERISTIC
VALUE
 TEST METHOD
PHYSICAL PROPERTIES
Density 1.19 + 0.2 ASTM D-1505
Water Absorption 1 %(Max.) ASTM D-570/ISO 62
Tensile Strength 13N/SQMM(MIN.) ASTM D-412/ISO 37
Ultimate Elongation 400%(Min.) ASTM D-412/ISO 37
Hardness 45 + 3 Shore D ASTM D-2240
THERMAL AGING TEST AT 120º FOR 500 HOURS
Tensile Strenght 5.5 N/Sq MM(Min.) ASTM D-412/ISO 37
Ultimate ELONGATION 100%(Min.) ASTM D-412/ISO 37
ELECTRICAL PROPERTIES
Volume resistivity 1 × 10 ohm cm (Min.) ASTM D 257/IEC 93
DI-ELECTRICAL Strength 10KV/MM(Min.) ASTM D 149/IEC 243
DI ELECTRICAL Constant 5(Max.) ASTM D 150/IEC 250
WEATHERABILITY TAST(5000 HRS.IN UV TESTER)
Tensile Strength 5.5 N/SQMM(Min.) ASTM D-412/SIO 37
Ultimate Elongation 200%(Min.) ASTM D-412/ISO 37
