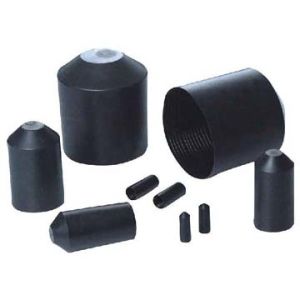

CONDUCTIVE END CAP

APPLICATIONS:-

Heat shrinkable Conductive End Caps performs the same functions as an insulating cap of sealing the cable ends. This caps are specially used where there are live power cables in the close proximite of the cable that has to be sealed.The conductive mastic coated end caps serves the function of neautralizing any potential induced in the cables.The end caps are made from thermally stablized crosslinked, semi-conductive polymer material.

  • All dimensions are in mm
  • Drawing depicts typical dimensions
  • E - As supplied
  • S - After free recovery
  • D, d - internal diameter without adhesive coating LC - Longitudinal change
  • T- Thickness

DIMENSIONS - GEC SERIES

SIZE D/d B A LC T
E S E S E S S
min. max. min. min. min. % +20%
GECC 14/4-40 14 4.5 45 40 15 +10% 2.5
GECC 14/4-60 14 4.5 65 60 25 +10% 2.5
GECC 16/6-45 16 4.5 50 45 15 +10% 2.5
GECC 24/8-65 24 8 50 45 15 +10% 2.8
GECC 36/15-160 35 16 170 105 50 +10% 3.0
GECC 40/17-105 40 17 110 105 35 +10% 3.2
GECC 40/17-160 40 17 170 140 50 +10% 3.0
GECC 55/25-105 55 25 150 105 35 +10% 4.2
GECC 55/25-160 55 25 170 160 70 +10% 4.2
GEC 62/25-105 62 25 110 105 35 +10% 4.2
GECC 62/25-160 62 25 170 160 70 +10% 4.2
GECC 75/34-105 75 34 120 105 100 +10% 3.5
GECC 75/34-190 75 34 220 190 100 +10% 3.5
GECC 105/45-105 105 45 120 105 70 +10% 3.5
GECC 105/45-160 105 45 175 160 70 +10% 3.5

MATERIAL SPECIFICATIONS

CHARACTERISTIC
VALUE
 TEST METHOD
PHYSICAL PROPERTIES
Specific gravity 1+1 + 0.2 ASTM D-1505
Water Absorption 1%(Max.) ASTM D-412/ISO 62
Colour Black
Tensile Strength 12N/SQMM(MIN.) ASTM D-412/ISO 37
Hardness 45+3 Shore D ASTM D-2240
THERMAL AGING TEST AT 120° For 500 HOURS
Tensile Strenght 10 N/Sq MM(Min.) ASTM D-412/ISO 37
Ultimate Elongation 250%(Min.) ASTM D-412/ISO 37
ELECTRICAL PROPERTIES
Volume resistivity 1 * 10 ohm cm (Min.) ASTM D 257/IEC 93
