- All dimensions are in mm
- Drawing depicts typical dimensions
- E - As supplied
- S - After free recovery
- D, d - internal diameter without adhesive coating LC - Longitudinal change
- T- Thickness

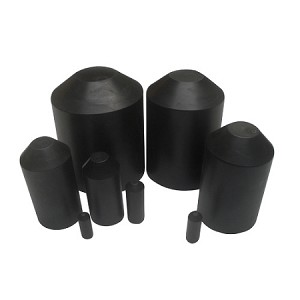

Heat shrinkable End Caps are used to seal the ends of all types of cables and protect from ingress of water/moisture. The end caps are made from thermally stablized crosslinked, polymeric material. The caps are internally coated with Hot melt adhesive. End caps with valves can be supply.
| SIZE | D | B | A | LC | T | ||
|---|---|---|---|---|---|---|---|
| E | S | E | S | E | S | S | |
| min. | max. | min. | min. | min. | % | +20% | |
| GEC 001 | 12 | 4.5 | 45 | 40 | 15 | +10% | 1.2 |
| GEC 101 | 20 | 9 | 60 | 55 | 20 | +10% | 3.0 |
| GEC 101L | 20 | 9 | 110 | 100 | 35 | +10% | 3.0 |
| GEC 201 | 35 | 16 | 80 | 75 | 30 | +10% | 3.0 |
| GEC 201L | 35 | 16 | 140 | 135 | 35 | +10% | 3.0 |
| GEC 301 | 55 | 25 | 90 | 85 | 30 | +10% | 4.0 |
| GEC 301L | 55 | 25 | 150 | 140 | 50 | +10% | 4.0 |
| GEC 401 | 75 | 34 | 150 | 100 | 50 | +10% | 4.2 |
| GEC 401L | 75 | 34 | 175 | 165 | 70 | +10% | 4.2 |
| GEC 501 | 100 | 59 | 110 | 100 | 70 | +10% | 4.2 |
| GEC 501L | 100 | 59 | 190 | 180 | 70 | +10% | 4.2 |
| GEC 601 | 120 | 59 | 110 | 100 | 70 | +10% | 4.2 |
| GEC 601L | 145 | 71 | 120 | 110 | 70 | +10% | 4.6 |
| CHARACTERISTIC | TEST METHOD | |
|---|---|---|
| PHYSICAL PROPERTIES | ||
| Specific gravity | 1+1 + 0.2 | ASTM D-1505 |
| Water Absorption | 1%(Max.) | ASTM D-412/ISO 62 |
| Colour | Black | |
| Tensile Strength | 10N/SOMN(MIN.) | ASTM D-412/ISO 37 |
| Hardness | 45+3 Shore D | ASTM D-2240 |
| Tensile Strenght | 8 N/Sq MM(Min.) | ASTM D-412/ISO 37 |
| Ultimate ELONGATION | 200%(Min.) | ASTM D-412/ISO 37 |
| Volume resistivity | 1 * 10 ohm cm (Min.) | ASTM D 257/IEC 93 |
| Dielectric resistivity | 1 * 10 ohm cm (Min.) | ASTM D 149/IEC 243 |
| Dielectric Constant | 5(Max.) | ASTM D 149/IEC 250 |
