- All dimensions are in mm
- Drawing depicts typical dimensions
- E - As supplied
- S - After free recovery
- D,d - internal diameter without adhesive coating

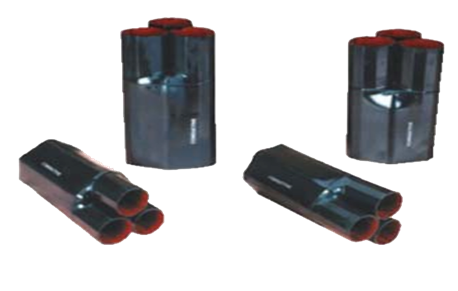

Heat shrinkable 3-way semi-conducting cable breakout provide and environmental seal to the crutch of 3 core plastic and paper insu-lated cables termination rated up to 36kv. The breakout are made from thermally stablized, cross linked, Semi-conductive polymeric ma-terial. The breakout are coated internally with water resistant mastic. This breakouts are specially used for 11kv PILC belted cable to seal the crutch area as well as to provide individual screen to each core.
| Mobile No Size | TB | TF | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| E | S | E | S | S | S | |||||
| min. | max. | min. | max. | +20% | +20% | |||||
| GCBR 0820 | 50 | 21 | 22 | 9 | 135 | 187 | 31 | 50 | 3.5 | 2.2 |
| GCBR 1330 | 75 | 31 | 32 | 14 | 160 | 210 | 40 | 60 | 3.8 | 2.2 |
| GCBR 2145 | 110 | 46 | 52 | 22 | 160 | 232 | 40 | 60 | 3.8 | 2.8 |
| GCBR 2755 | 135 | 56 | 64 | 28 | 230 | 270 | 40 | 65 | 3.8 | 2.8 |
| CHARACTERISTIC | TEST METHOD | |
|---|---|---|
| CHARACTERISTIC | TEST METHOD | |
| Specifice Gravity | 1.01 + 0.2 | ASTM D-1505 |
| Water Absorption | 1 %(Max.) | ASTM D-570/ISO 62 |
| Tensile Strength | 12N/SQMM(MIN.) | ASTM D-412/ISO 37 |
| Ultimate Elongation | 300%(Min.) | ASTM D-412/ISO 37 |
| Hardness | 45 + 3 Shore D | ASTM D-2240 |
| THERMAL AGING TEST AT 120º FOR 500 HOURS | ||
| Tensile Strenght | 10 N/Sq MM(Min.) | ASTM D-412/ISO 37 |
| Ultimate ELONGATION | 250%(Min.) | ASTM D-412/ISO 37 |
| Volume resistivity | 1 × 10 ohm cm (Min.) | ASTM D 257/IEC 93 |
